Immersion Coils

Unit Liner Company supplies immersion coils in many different configurations to meet the specific needs of the industry. Grid coils are used to achieve the maximum heat transfer area in the least amount of dimensional space. Serpentine and "U" coils are used in situations were smaller heat transfer requirements are needed.

Available Materials Of Construction:
  • Titanium
  • Stainless Steel
  • Zirconium
  • Tantalum
  • Niobium
Standard Immersion Coil Features:
  • 1" O.D. Titanium Tubing
  • Various Mounting Options Available
  • Support Braces Between Riser Tubes for Coil Strength
  • All Styles Equipped for Water or Steam Service
  • Pressure tested at 100 PSIG
  • 100% Inert Gas Purged Welds
  • 5-Year Warranty
Standard Immersion Coil Options:
  • Hanger Straps
  • Anti-Flotation Arms
  • Solution Level Jackets
  • Horizontal or Vertical Orientation for Side Wall Mounting or Bottom Mounts Also Available

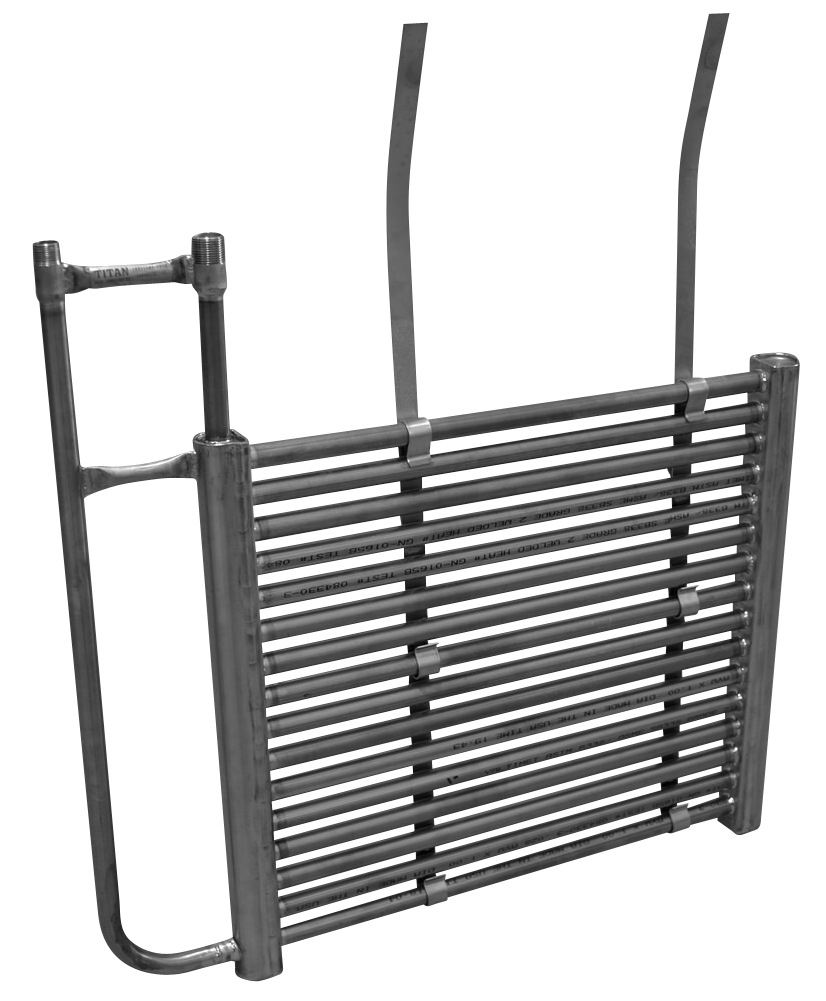

Immersion Coil

Immersion Coil

Immersion Coils for Steel Pickling Applications Using Sulfuric or Hydrochloric Acid

TITAN Metal Fabricators are the industry experts for corrosion-resistant pickle bath heat exchangers. Our products are all custom-engineered and fabricated to specific applications. TITAN offers a full line of standard and custom designed in-tank immersion coils for the indirect steam heating of pickle bath operations.

  • Cost competitive with PTFE Immersion Heaters
  • Elimination of downtime due to equipment failure
  • No spare parts to keep in inventory
  • Superior corrosion resistance
  • High heat transfer
  • High steam pressures to reduce required surface area
  • Fully welded metal design eliminates breakage during handling, installation and operation
  • Elimination of acid leaks into steam condensate
